Stock machines - new and used

Take advantage of our special promotion:

1 free inspection after 12 months for all used machines purchased in 2020!

Click here for our currently available and recently overhauled used machines.

Currently available - New machines

Subject to prior sale

If you are interested to purchase one of our new stock machines please get in touch with either your personal sales representative or contact sales-hh@blohmjung.com.

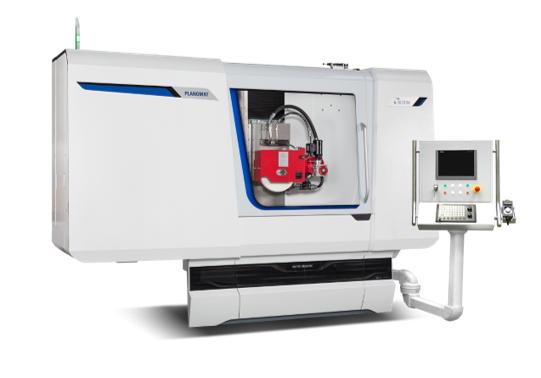

PLANOMAT HP 408 EP

  • Grinding area 800 x 400 mm
  • X-axis feed rate 40,000 mm / min
  • Power spindle drive 15 kW
  • Max. Ø grinding wheel 400 mm, max. Width 100 mm
  • 12 “touch widescreen
  • Delivery time: maximum 3 months
  • Magnetic clamping plate 800 x 400 mm, DQ13
  • Preparation of manual balancing, balancing mandrel
  • Diamond holder with MK1 diamond
  • Band filter 150-100 / 3.5 with 650 L tank

PLANOMAT HP 612 EP

  • Grinding area 1200 x 600 mm
  • X-axis feed rate 40,000 mm / min
  • Power spindle drive 15 kW
  • Max. Ø grinding wheel 400 mm, max. Width 100 mm
  • 12 “touch widescreen
  • Delivery time: immediately
  • Magnetic clamping plate 1200 x 600 mm, DQ18
  • Preparation of manual balancing, balancing mandrel
  • Diamond holder with MK1 diamond
  • Band filter 150-100 / 3.5 with 650 L tank

PLANOMAT HP 608 CNC

  • Grinding area 800 x 600 mm
  • X-axis feed rate 40,000 mm / min
  • Power spindle drive 24.5 kW
  • Max. Ø grinding wheel 400 mm, max. Width 100 mm
  • Control Siemens 840D sl
  • Delivery time: max. 2 months
  • Magnetic clamping plate 800 x 600 mm, DQ13
  • Automatic sliding door
  • Central lubrication
  • Preparation of manual balancing, balancing mandrel
  • Band filter 250-200 / 8

PLANOMAT XT 412 CNC

  • Grinding area 1200 x 600 mm
  • Linear direct drive for X-axis max. 80,000 mm / min
  • Power spindle drive 24.5 kW
  • Max. Ø grinding wheel 400 mm, max. Width 100 mm
  • Control Siemens 840D sl
  • Delivery time: immediately
  • Magnetic clamping plate 1200 x 600 mm, DQ18
  • Protective cover 400x160 for set washers
  • Linear direct drive for X-axis
  • Linear measuring system X
  • Increased spindle performance
  • Automatic nozzle adjustment on the right
  • Automatic sliding door
  • Central lubrication
  • Automatic wheel balancer
  • Structure-borne sound sensors
  • Table dressing device PA-TR200S, alternatively swiveling dressing device PA-T130
  • Band filter 250-200 / 8

PROFIMAT MT 608 CNC

  • Grinding area 800 x 600 mm
  • Power spindle drive 44 kW
  • Max. Ø grinding wheel 400 mm, max. Width 160 mm
  • Control Siemens 840D sl
  • Delivery time: max. 2 months
  • Head dresser PA-K160M
  • Raised machine stand
  • Automatic sliding door, central lubrication
  • Autom. Nozzle adjustment R
  • Linear measuring system X

PROFIMAT XT 608 CNC

  • Grinding area 800 x 600 mm
  • Power spindle drive 44 kW
  • Max. Ø grinding wheel 500 mm, max. Width 160 mm
  • Control Siemens 840D sl
  • Delivery time: max. 2 months
  • Head dresser PA-K160M-500V
  • Linear drive X-axis, max. 80,000 mm / min
  • Automatic sliding door, central lubrication
  • Autom. RazorTec® nozzle adjustment R



Currently Available - Used machines (Subject to prior sale)

We currently have the following used machines available for you:

Rebuild PLANOMAT 408

  • Completely overhauled
  • Control 840 D SL
  • Closed work room cover
  • Grinding spindle drive adjustable 16 kW
  • Grinding wheel attachment 400 x 60…80 x 127 mm
  • E-Perm Solenoid Plate 700 x 400 – DQ 18
  • Linear measuring systems for axles Y and Z
  • Coolant feed right, left optional
  • Connection preparation for PA-TL
  • Standard briberdiamant
  • prepared for Digital Solutions

PLANOMAT 616

  • Complete mechanical overhaul in 2019
  • Control 840 D
  • enclosed work room garnish in special version with sliding door for wide workpieces
  • Grinding spindle drive adjustable 24.5 kW
  • Grinding wheel opening  400 x 25...100 x 127 mm
  • E-Perm magnetic tension plate 1500 x 500 - DQ 18
  • Linear measuring systems for axles Y and Z
  • X-axis rotary encoder
  • Coolant feed right & left
  • PA-TL200S
  • Dittel M5000 Balancer
  • Increased machine stand (table centre 150-950 mm)
  • prepared for Digital Solutions

Rebuild Machine PLANOMAT 620

  • Completely overhauled
  • Control: 840 EP
  • Half closed working room
  • Spindle drive 11.4KW
  • Grinding wheel attachment 400 x 30…80 x 127mm
  • E-Perm Solenoid Plate 2000 x 600 – DQ18
  • Linear measuring system for axles Y and Z
  • Frozen feed right, left optional
  • Connection preparation for PA-TL
  • Standard briberdiamant
  • Increased machine stand (table centre 150-950 mm)
  • prepared for Digital Solutions

PLANOMAT HP 412 CNC

  • Mechanically overhauled in 2020
  • Control 840 D Solution Line
  • Grinding spindle drive adjustable 15 kW
  • grinding wheel holder 400 x 35 ... 100 x 127 mm
  • E-Perm magnetic clamping plate 1100 x 400 - DQ 18
  • Linear measuring system X-axis
  • Manual electric balancer
  • Profile dressing device PA-T130S
  • Manual coolant supply right
  • KMN suction SARA UC2
  • Coolant system 250 l/min with cooling unit 4.9 kW
  • Prepared for Digital Solutions
  • Original year of construction 2017



PROKOS CNC

  • Production grinding machine with 5 axes
  • year of construction 2013 / demonstration machine
  • grinding area: 300 x 300 x 300 mm
  • Grinding spindle drive: 35 kW from 4.300 1/min
  • grinding spindle speed adjustable: max. 12.000 1/min
  • Tool holder: HSK-A 63
  • grinding wheel: 300 x 50 x 76,2 mm
  • Machine control: Siemens 840 D
  • PEA-2V-150-n max. 6000
  • Automatic wheel changer 12-times PROKOS
  • Setup station for wheel changer
  • Return pump station 400 l/min
  • B-axis pallet system PROKOS
  • Round bed filter 350-200/15-51/70, tank volume approx. 4000 l
  • cooling unit 17,2 kW
  • Automatic nozzle tracking Coolant supply
  • 5 main axes:
    • X = table longitudinal movement
    • Y = grinding head vertical movement
    • Z = Stand transverse movement
    • A = rotary actuator
    • B = Rotary table
  • Linear interpolation in 5 of 5 axes (X, Y, Z, A and B)
  • Circular interpolation in 2 of 5 axes (X, Y, Z, A and B)
Angela Fahrenkrog
Overhaul/Repair of assembly groups
Kurt-A.-Körber-Chaussee 63-71
21033 Hamburg
Germany
Fax:
+49 40 33461 2101

Alternatively, contact your local BLOHM sales representative
